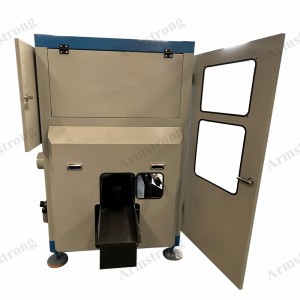

Automatic Drilling Machine

Short Description:

Automatic CNC Grinding Machine

Machine weight 1750 KG
Machine power Full-load production, total power is 12kW/hr
Movement axis 5
Brake lining size

Inner arc radius: R142-245 mm,

Width: 120-245mm

Max loading Qty 20 pcs
Spindle motor power 2.2 kW * 2
Spindle motor Max speed 2840 rpm
Drilling head diameter Φ10~Φ20.5 mm
Servo motor power 1.5-2.2 kW
Stepping motor power 1.5-2.2 kW

Product Detail

Product Tags

1.Application:
Automatic CNC drilling machine for brake lining, is a revolution in production field of brake lining, which completely subverts the traditional production models. A change in the past of high dust, high pollution and high cost, successful implementation of clean production.

For example, in the past, a small factory need at least 15-20 sets of manual drilling machines, operators not only labor intensity, low efficiency, and generate a large amount of dust is easy to breathe by workers. Use our CNC drilling machine, this scale factory only need 4-5 set can ensure to complete various types of friction plate drilling task, operators can reduce 75%.

Place the brake linings on the feeding device in sequence, and the feeding power mechanism will place the brake linings on the mold. The mold will automatically clamp the brake linings and turn them to the drilling station, so that the position where the brake linings need to be drilled is facing the drill bit. The drill bit sequentially drills holes on the brake linings according to the pre-set drilling parameters, and then the mold rotates again to discharge the brake linings into the discharging device. The entire machining process is efficient and the drilling is also very accurate.


2.Our Advantages:
- High machining precision: 5-10 thread (National standard is 15-30 thread)

- Wide processing range and high working efficiency:
It can process the brake pads with Max.width: 225mm, R142~245mm, drilling hole diameter 10.5~23.5mm.

- One worker can operate 3-4machines, one machine(8 hours) can product 1000-3000 pieces of brake pads.

- Full functions, easy to operate:
A.Computer control, change the drilling parameter only need to input command data in computer.

B.Five axes linkage control, flexible-simple, fast-accurate, automatic-efficient.

C.With properties of automatic dividing (locating angle) , automatic rotation, automatic drilling, automatic loading, automatic demount, automatic material receiving.

- Environmental and energy saving: Adding dust removal device, the whole-enclose production, ensure that operators in the clean environment. Two times dust exhausting can be performed, dust extraction rate can reach more than 95%. Changed the traditional production mode of brake pads with High dust, pollution and cost.

- Wide application range, economic and durable, compact structure, easy to operate. High degree of automation, single station in worktable 180˚ round trip, one worker can operate 3-4 machines, high efficient, long service life. Domestic famous brand electrical configuration, double drills, 5-axis CNC system, automatic stream lubrication. Original creation of quick change module design, high efficiency in dust removal.
