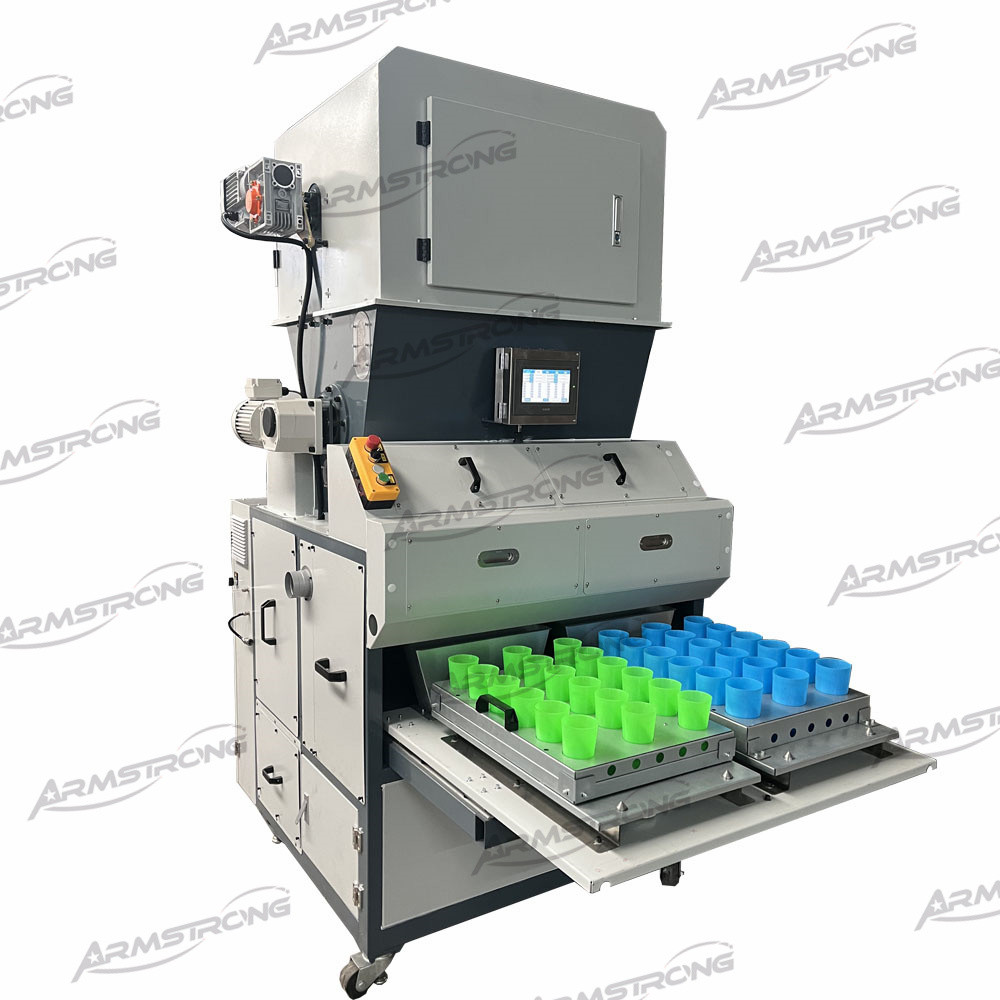

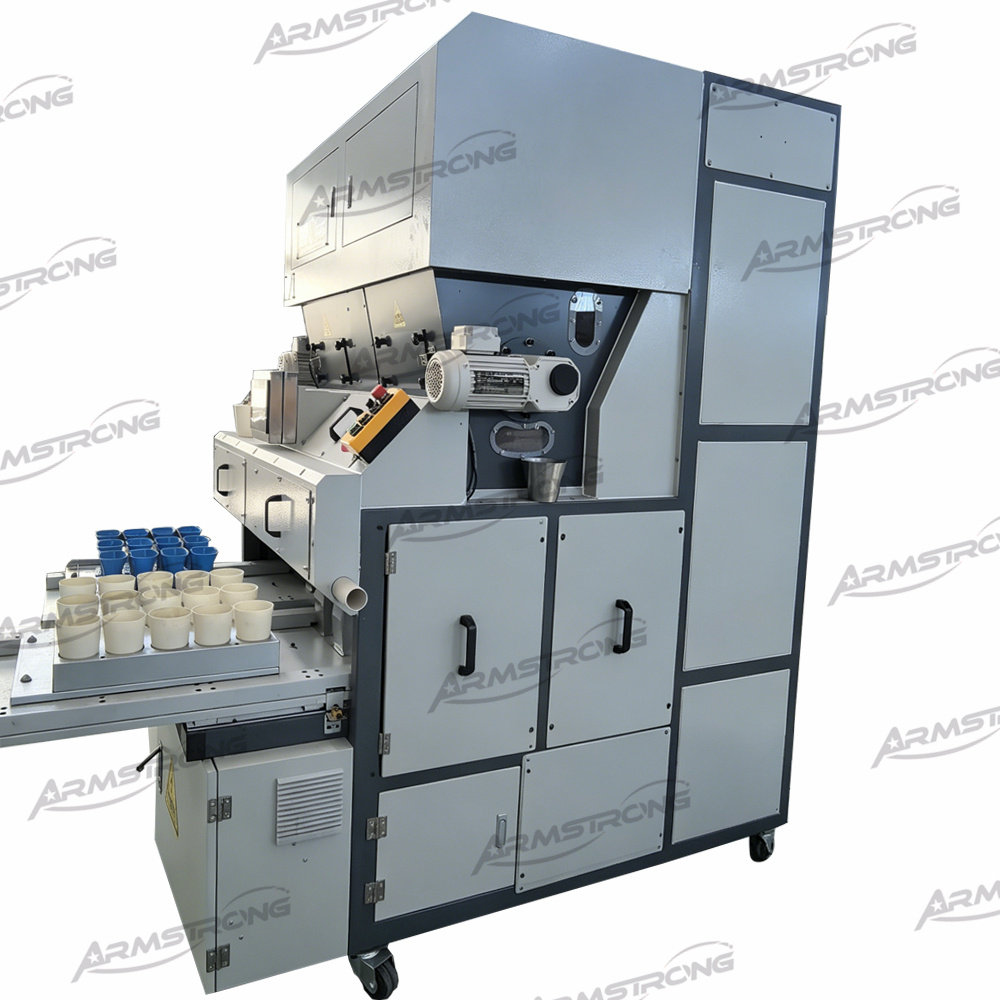

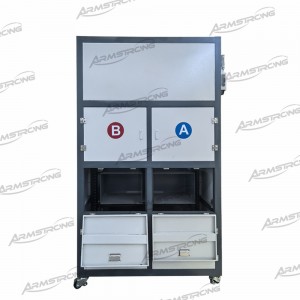

Auto Material Weighing Machine
1.Application:
In brake pad manufacturing, different models require different raw material weights. To maximize efficiency during hot pressing, it’s essential to pre-weigh the exact amount of material for each cavity of the mold. Our Automatic Material Weighing Machine is designed to accurately weigh friction materials according to preset gram targets and dispense them into individual cups or boxes. Ideal for both OE factories and aftermarket brake pad producers, this machine brings speed, accuracy, and flexibility to your production line.
2.Our advantages:

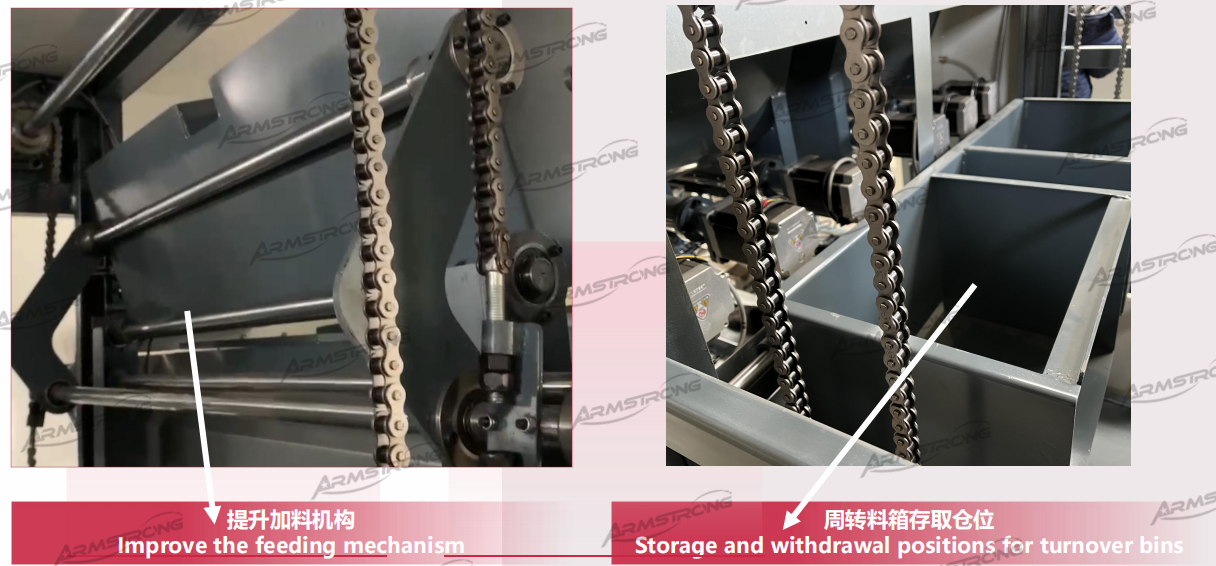

2.1 Automatic Material Loading
Simply push the material box filled with friction material into the rear loading frame. The system automatically feeds material into the machine, significantly reducing manual labor and material handling time.

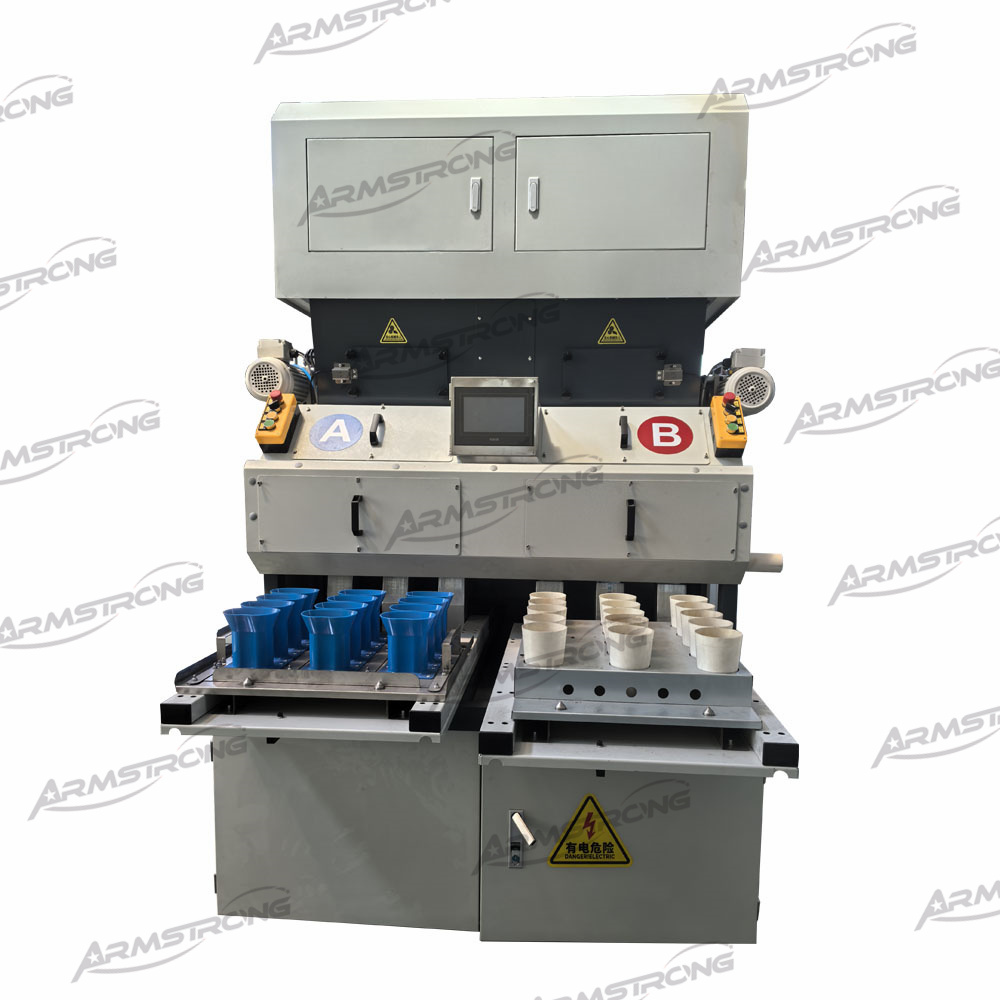

2.2 Dual Independent Weighing Hoppers
Equipped with two separate weighing mechanisms – Bin A and Bin B. Each can hold a different formulation, allowing the machine to weigh two different recipes simultaneously, doubling your production flexibility.
2.3 Flexible Material Receiving Options
Adapt the machine to your actual production needs. The receiving unit is fully customizable based on your existing tooling and workflow.

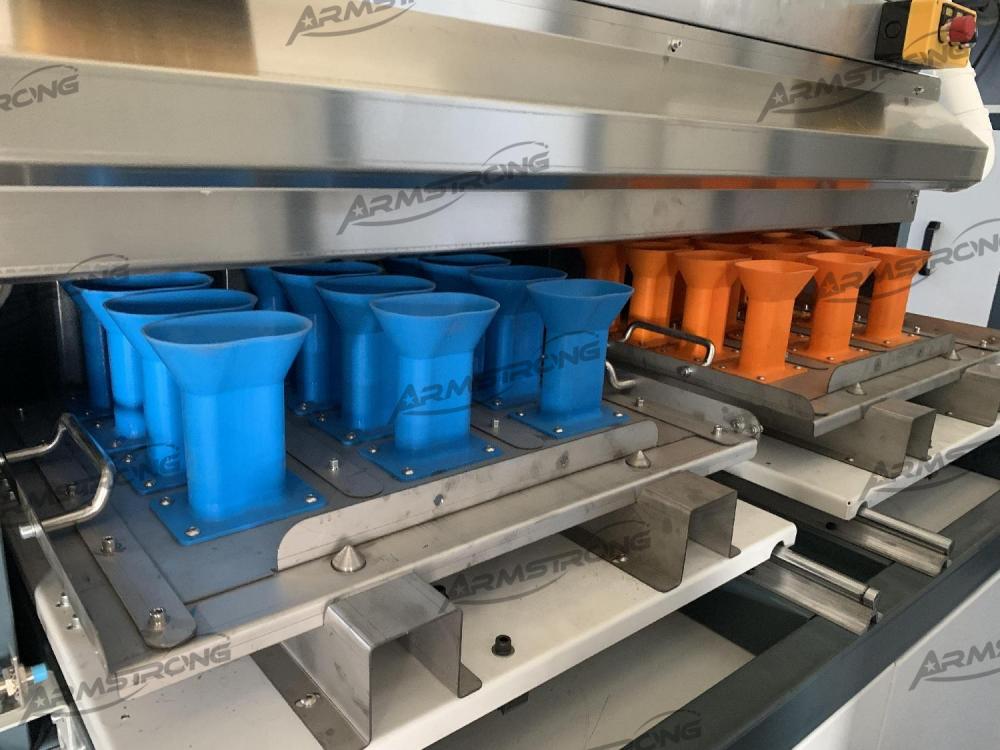

Two material boxes type:

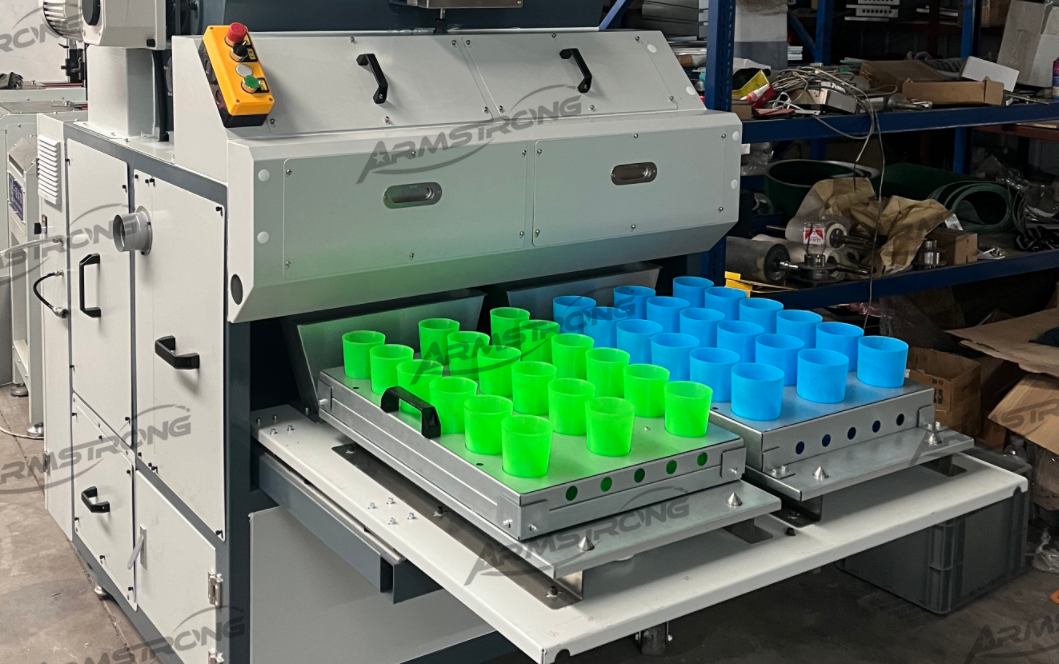

Two material cups type:

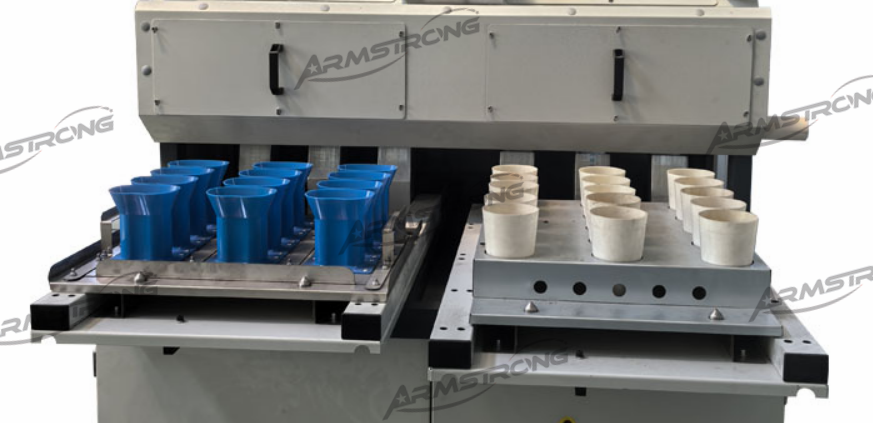

One box + one cup type:
2.4 Simultaneous Weighing Stations
With 6 independent weighing stations working at the same time, the machine dramatically improves weighing efficiency, helping you keep pace with high-volume pressing operations.
2.5 Integrated Mixing Function
An internal mixing hopper and auger (screw conveyor) system continuously agitates the material, preventing separation or stratification. This ensures that each weighed portion remains uniform and consistent.
2.6 PLC + Recipe Storage
The PLC can store 1,000 different brake pad model recipes. When changing production models, simply select the model name from the memory – no need to reprogram weighing parameters. Changeover takes seconds.
2.7 Fool-Proof Design (Poka-Yoke)
The system includes intelligent error prevention features, minimizing the risk of incorrect operation – especially helpful for new or less experienced operators.
2.8 NG Reject Function with Automatic Discharge
Real-time weighing verification detects any portion outside the acceptable tolerance range. Out-of-spec materials are automatically rejected and discharged into a lower material collection box. This guarantees that every cup or box is within the target weight range, ensuring consistent brake pad quality.
3. Why Choose This Weighing System?
Higher Efficiency – Automates feeding, weighing, and sorting
Lower Labor Costs – Reduces manual handling and supervision
Zero Compromise on Quality – Built-in checks and balances for every cycle
Perfect for Both OE and Aftermarket – Handles high-volume precision as well as flexible batch changes
