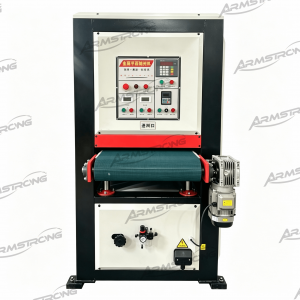

Back Plate Duburring Polishing Flattening Machine

Machine Overview:

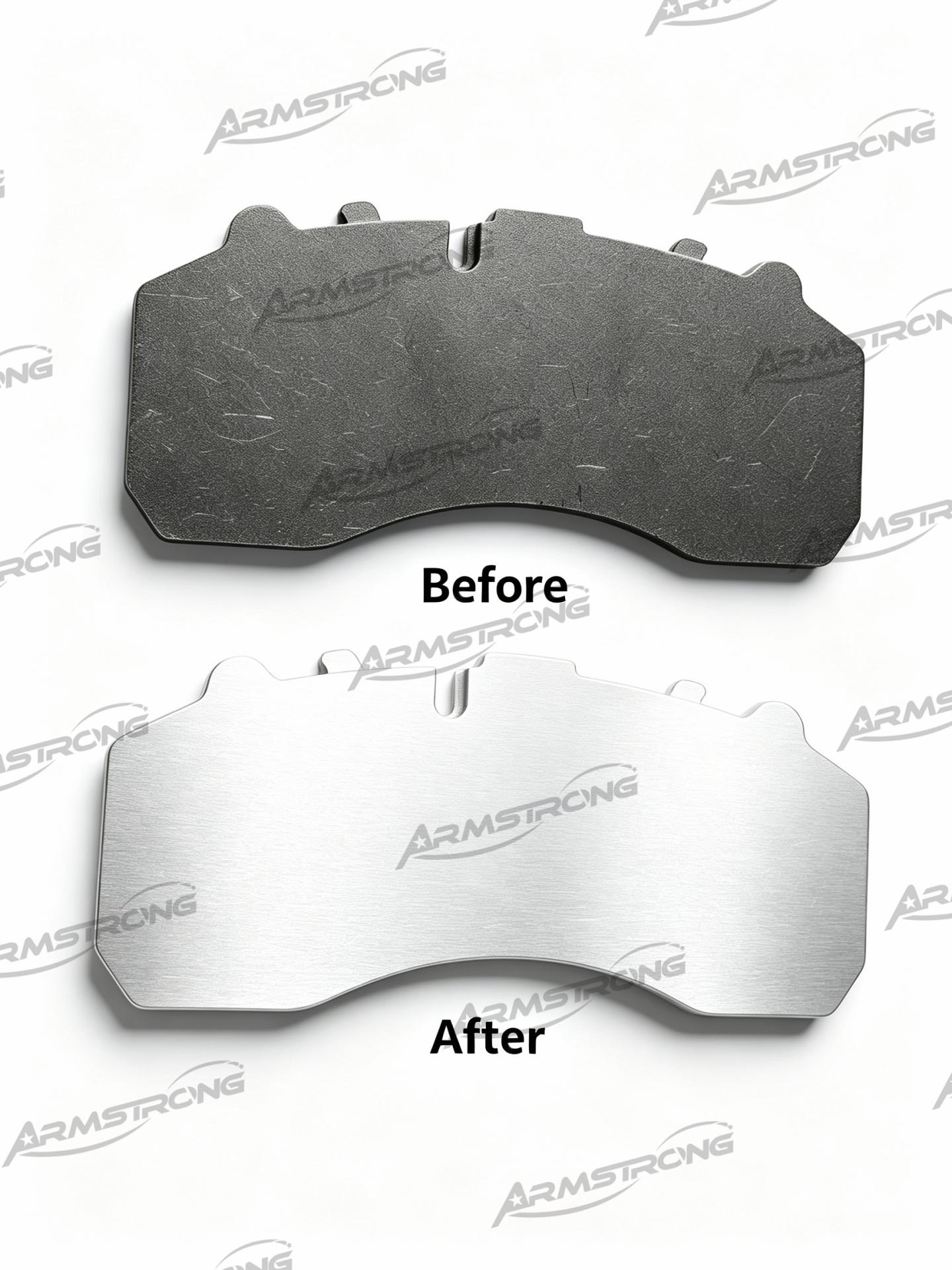

This back plate deburring, polishing & flattening machine adopts a combined abrasive belt structure, specially designed for surface processing of brake pad back plates and metal sheets. As a professional dry-type flat processing equipment, it integrates flattening, precision polishing, deburring, wire drawing and oxide scale removal in one single unit.

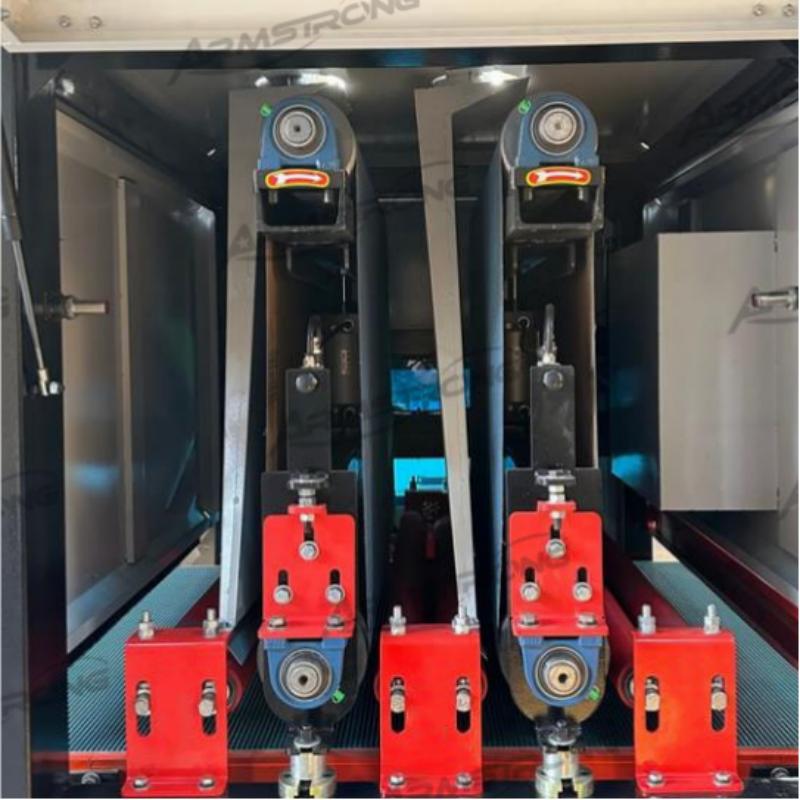

The machine features an independent dual-station processing design with coarse and fine sand belt mechanisms. The coarse sand belt station efficiently removes stubborn surface defects including welding slag, particle residues on workpieces, while the fine sand belt station further refines the surface to achieve a flawless, smooth and burr-free finish. It perfectly eliminates burrs and irregular edges generated from stamping, shearing, laser cutting, plasma cutting and other machining processes, delivering consistent, high-quality metal surface finishing results for mass production.

Our advantages:

1. Multi-Functional Integrated Processing

It supports one-stop completion of metal surface flattening, deburring and polishing. It solves multiple surface processing demands in a single pass, replacing multiple traditional single-function equipment and greatly simplifying the production process flow.

2. Dual-Station Independent & Collaborative Operation

Equipped with separate coarse sand and fine sand working stations that can operate independently or collaboratively. The coarse grinding removes heavy burrs and large surface flaws rapidly, and the fine grinding realizes precise surface smoothing. The graded processing ensures thorough defect removal and uniform, delicate workpiece surface texture.

3. Efficient One-Time Deburring Performance

Targeted at common defects produced by stamping, shearing, laser cutting and plasma cutting, the machine achieves thorough one-time deburring and edge rounding. It avoids secondary processing and manual polishing, effectively improving production efficiency and reducing workpiece rework rate.

4. Stable Dry-Type Processing Technology

Adopts a fully dry sanding and polishing mode without coolant or liquid auxiliary materials. It simplifies equipment structure and daily maintenance procedures, reduces production consumable costs, and avoids workpiece rusting, water stains and secondary pollution caused by wet processing.

5. Reliable & Consistent Processing Quality

The standardized mechanical sanding operation eliminates inconsistencies and errors of manual grinding. It ensures uniform surface flatness, smoothness and wire drawing effect for each batch of workpieces, realizing stable and repeatable high-precision processing results.

6. Flexible machine structure &design

The equipment features a compact structural design with a small floor area, saving valuable factory space and lowering site layout requirements. It supports flexible unit combination: two identical machines can be assembled and matched to realize fully automated double-sided deburring and finishing for brake plate steel backs. This dual-machine combination mode completes front and back surface processing in one go, drastically boosting overall production efficiency and doubling output capacity without occupying extra workshop area.
